Official Warranty
Warranty service is provided at authorized service centers of the manufacturer, the addresses of which are specified in the accompanying documents for the product.
Enjoy Using Our Product
X-BOOST E600
Power Supply: 220 V / 50 Hz
Motor Power: 250 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 600 kg
Weight: 9.4 kg
X-BOOST ES700
Power Supply: 220 V / 50 Hz
Motor Power: 280 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 700 kg
Weight: 9.4 kg
X-BOOST ES700 PRO
Power Supply: 220 V / 50 Hz; 110 V / 60 Hz
Motor Power: 300 W
Gate Movement Speed: 13-15 m/min
Maximum Gate Weight: 700 kg
Weight: 11.0 kg
X-BOOST ES900
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 330 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 900 kg
Weight: 9.8 kg
X-BOOST ES900 PRO
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 350 W
Gate Movement Speed: 13-15 m/min
Maximum Gate Weight: 900 kg
Weight: 11.1 kg
X-BOOST EQS900 PRO
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 170 W
Gate Movement Speed: 13-15 m/min
Maximum Gate Weight: 900 kg
Weight: 9.8 kg / Battery
X-BOOST ES1100
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 400 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 1100 kg
Weight: 15.0 kg
X-BOOST ES1100 PRO
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 450 W
Gate Movement Speed: 13-15 m/min
Maximum Gate Weight: 1100 kg
Weight: 15.1 kg
X-BOOST ES1300
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 450 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 1300 kg
Weight: 15.4 kg
X-BOOST ES1300 PRO
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 470 W
Gate Movement Speed: 13-15 m/min
Maximum Gate Weight: 1300 kg
Weight: 15.4 kg
X-BOOST ES1500
Power Supply: 220 V / 50 Hz
Motor Power Consumption: 570 W
Gate Movement Speed: 11-13 m/min
Maximum Gate Weight: 1500 kg
Weight: 16.8 kg

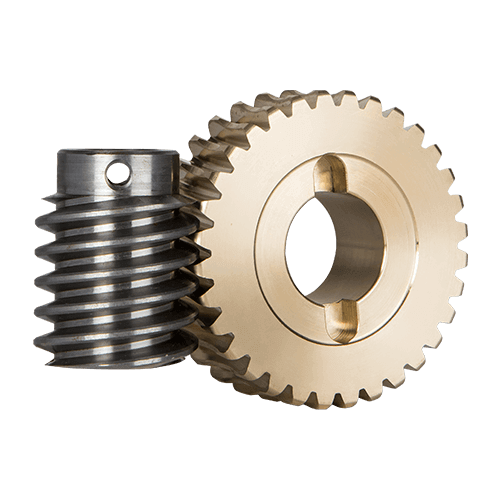

Reducer
The X-BOOST automation system utilizes a worm gear reducer. This solution is commonly encountered. In this setup, there is no need to install an additional locking mechanism since the automation system itself serves this purpose.
After the motor completes its operation, the transmission locks the gears, making it impossible to manually shift the gates.
The drive features an optimal combination of materials: a steel shaft interacts with a bronze internal gear. This solution minimizes wear on these two components.
Motor and Power
The X-BOOST automation system features an asynchronous motor with copper wire windings.
The rotor is brushless, ensuring the longevity of the automation system.
This type of rotor is resistant to wear and is practically immune to breakdowns.
The power of this automation system ranges from 280 W to 570 W depending on the model.
Advantages
Considering these advantages, metal reducers remain a popular choice in automated gate systems, where reliability, durability, and efficiency are crucial.
Reliability
The automation system demonstrates a high level of efficiency without compromising its quality.
Top-notch Design
The casing boasts a modern exterior complemented by aesthetic appeal.
Functional Features of the Control Unit
Smooth start and smooth stop
Gate leaf partial opening mode, also known as the wicket mode.
Automatic closing function.
Ability to connect sensors and additional remote controls.
Motor force adjustment capability.
Opening brake.
Closing brake.

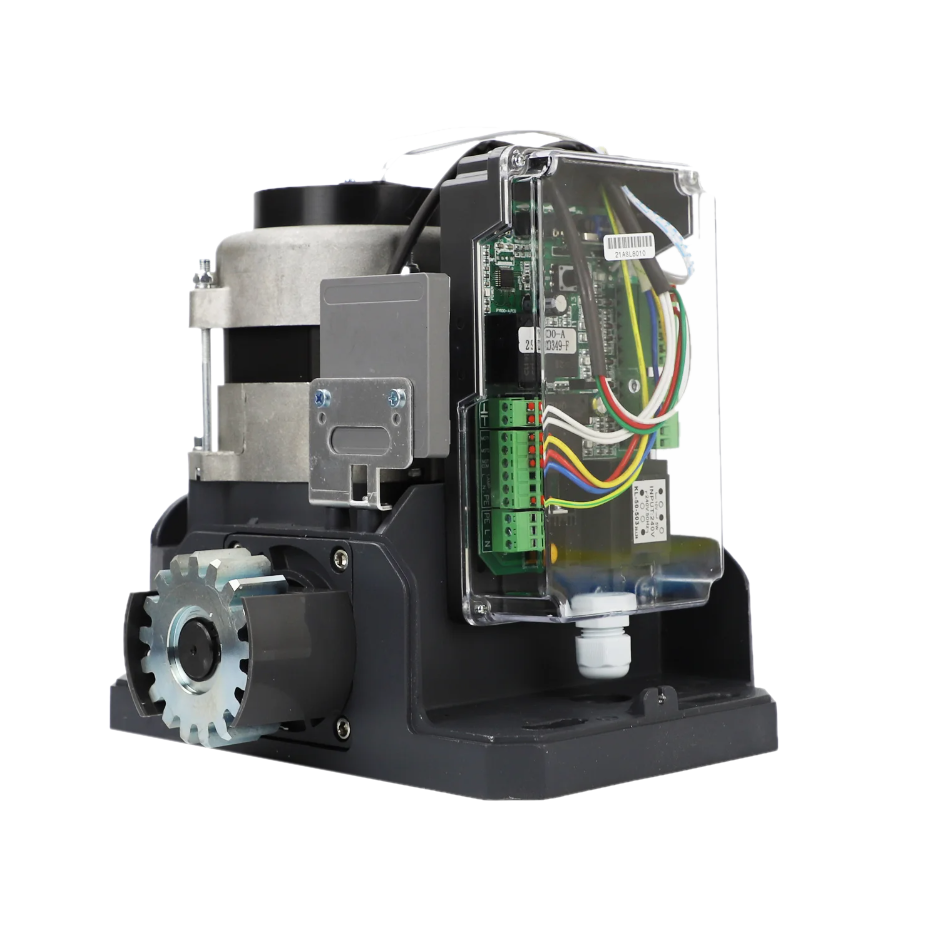

Drive Casing
The lower part of the casing is made of an aluminum alloy. Powder coating is applied for painting. This design ensures excellent protection against environmental influences and is resistant to corrosion. The automation board is protected from dust and moisture by a cover made of high-quality transparent plastic.
Frequently Asked Questions?
This question pertains to the size and weight of the gates, as well as the usage intensity. Selecting the correct power and type of automation is crucial for effective operation.
The safety question includes obstacle detection, safety systems to prevent injuries, and protection against unauthorized access.
From standard remote control units to the ability to control via mobile applications.
The warranty for this automation is valid for 5 years from the date of purchase.
